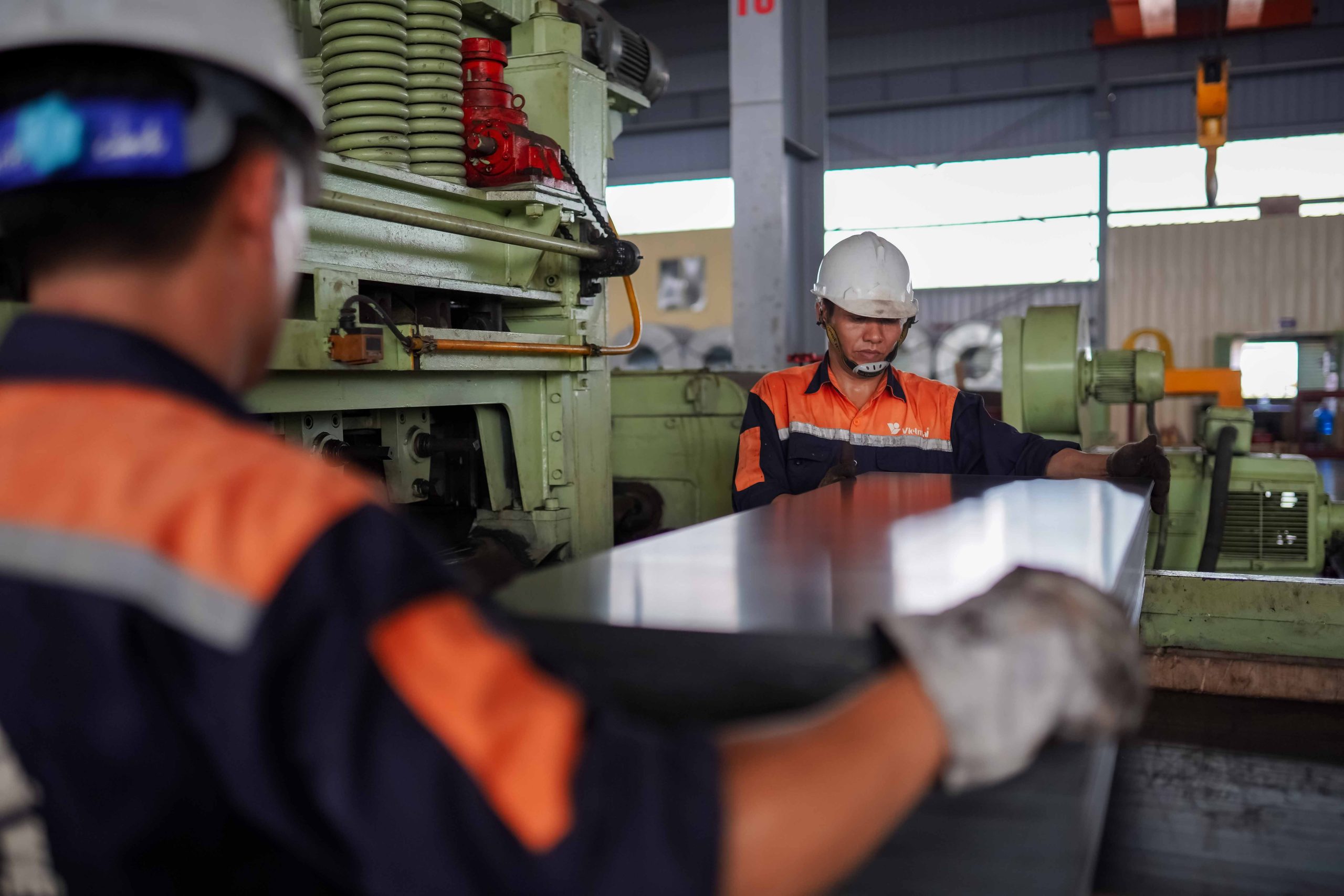

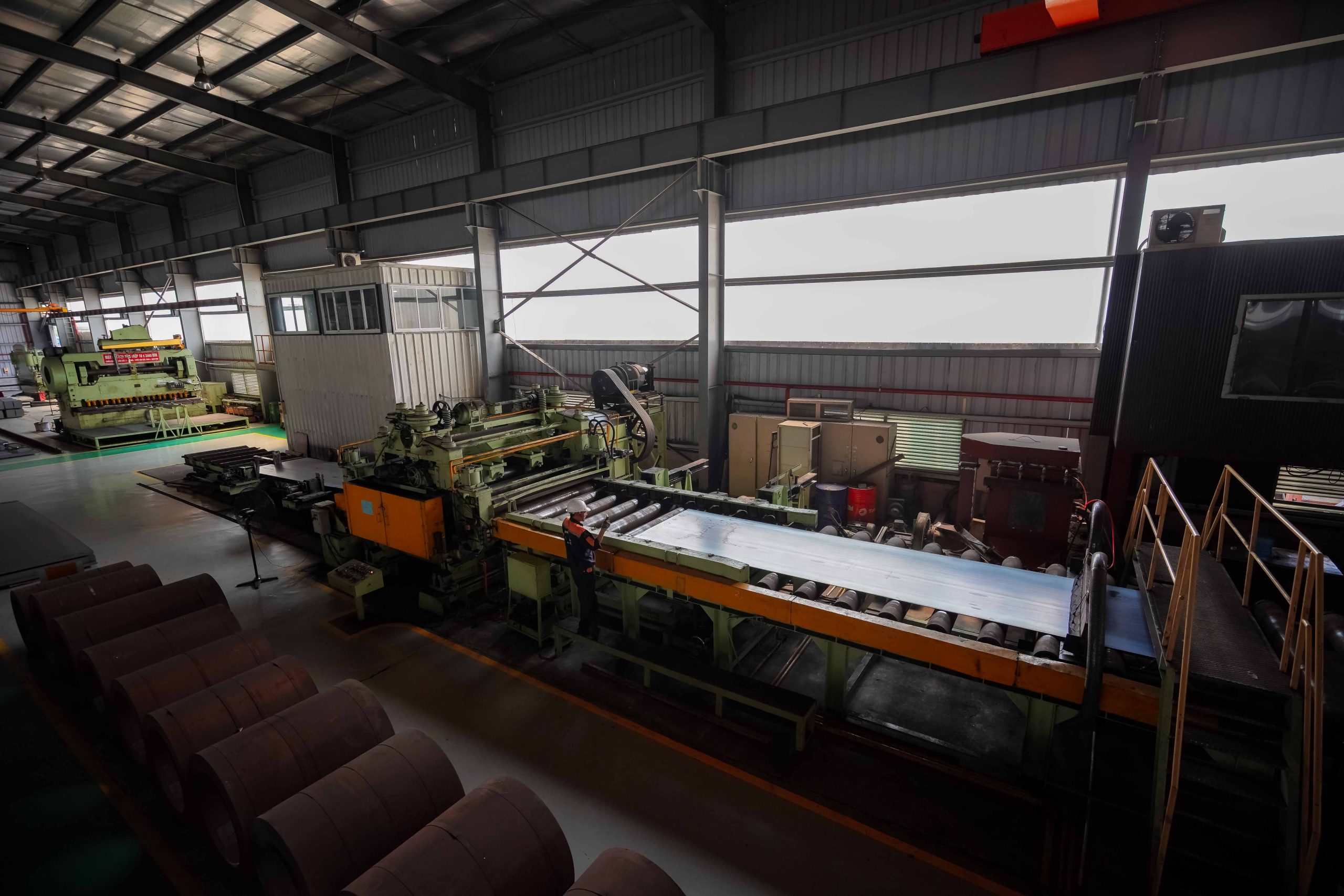

Shearing/Slitting Service

We have consistently invested and innovated to become the modern coil cutting service model over the years. With a strict management process as well as a careful selection of staff with high professional qualifications, we endeavor to provide the best product value while meeting the most stringent customer requirements.

Shearing Requirement Table

Steel Coil

Steel Material (H, C, E, G, A, P, L, PO, ZAM)
Thickness mm 0.5 – 20.0
Coil Width mm từ 350 – 2000
Coil Weight kg Tối đa 29,000
Inner Coil Diameter mm 610/750
Outer Coil Diameter mm Tối đa 1600, 2090 hoặc 2200

Product

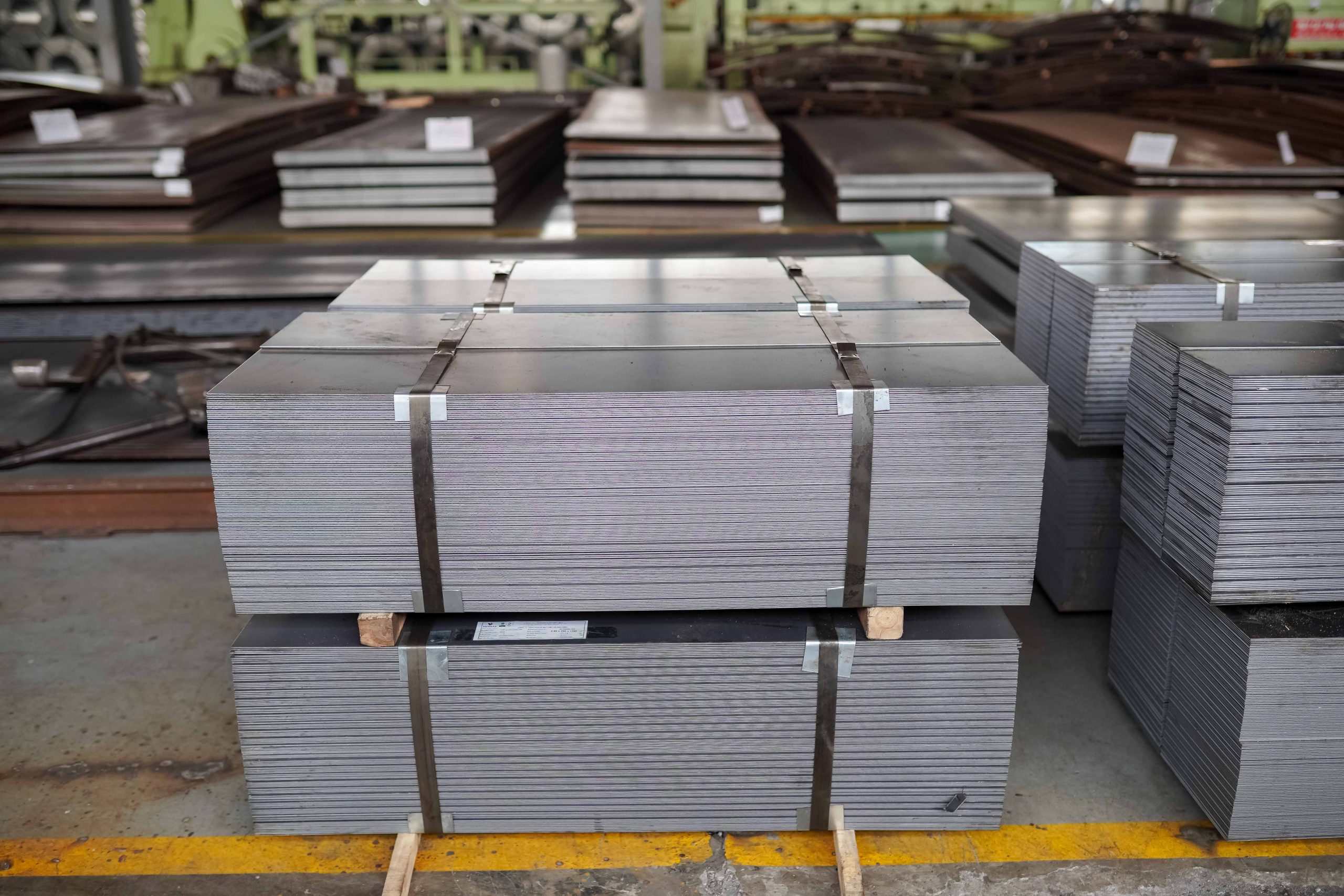

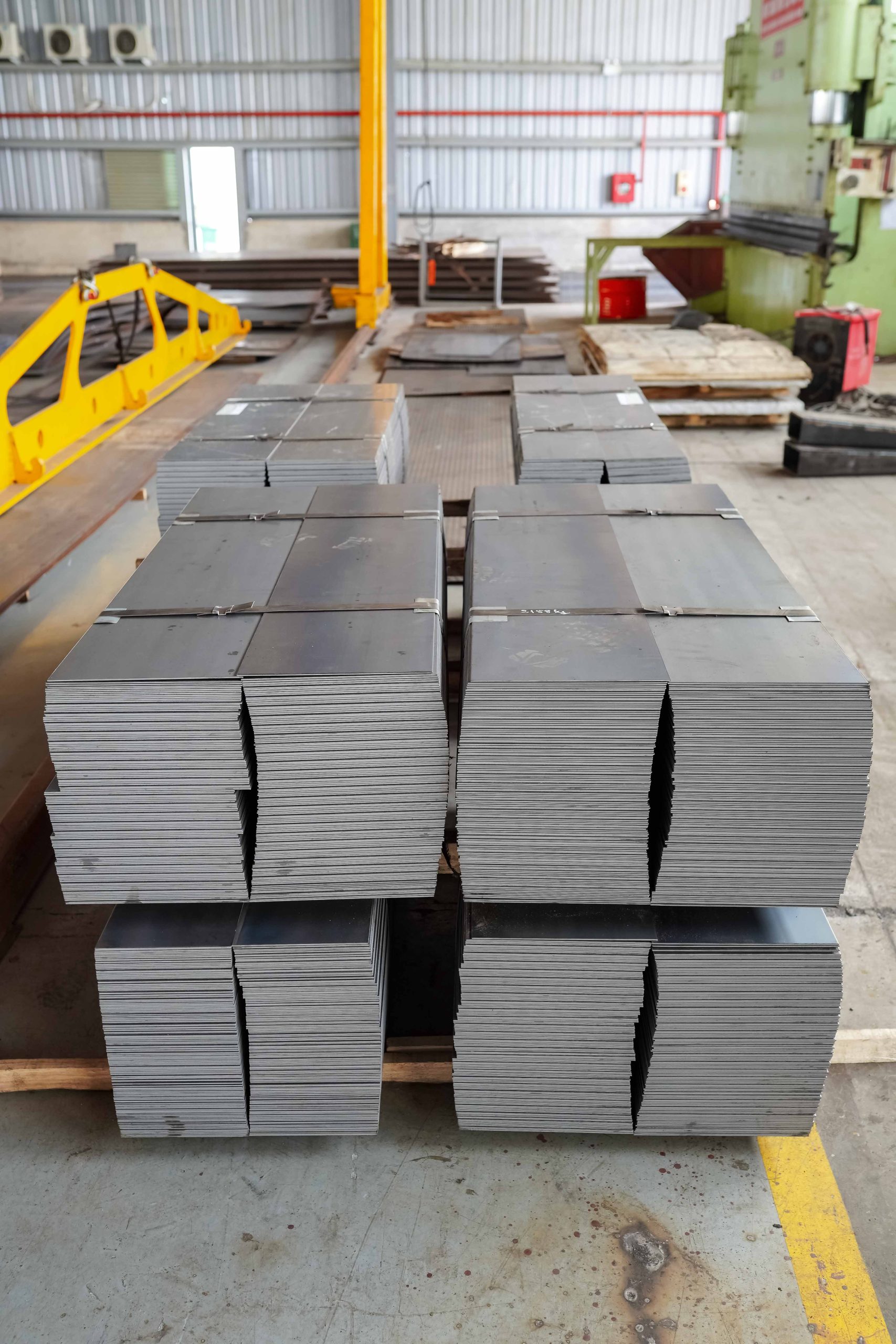

Product Length mm 350 – 12,000
Length Tolerance mm (-0,+3)
Diagonal Tolerance mm 1/1,000
Bavia (mm) mm Max 0.2

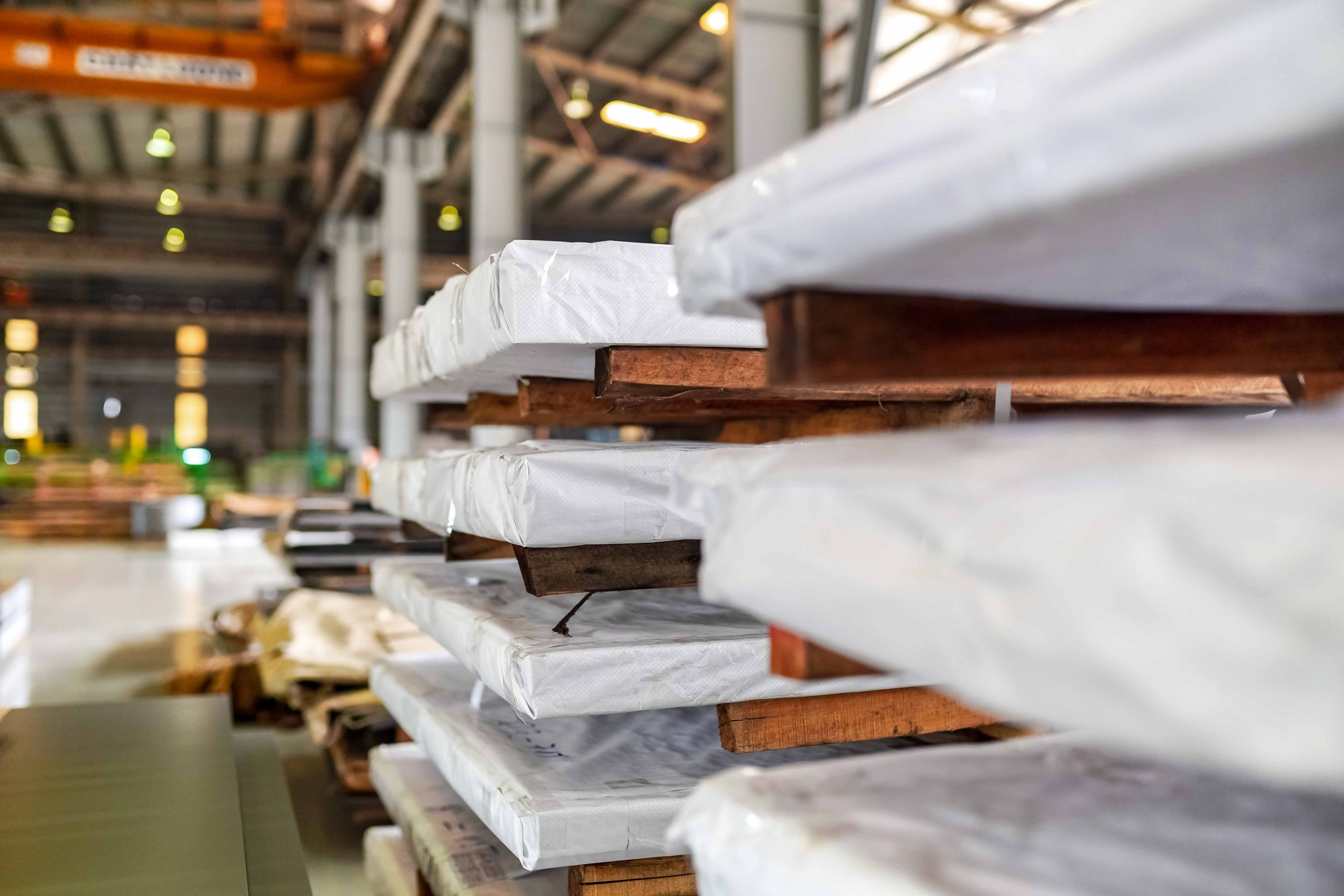

Pallet Packgaging PBG
Number of lines 9

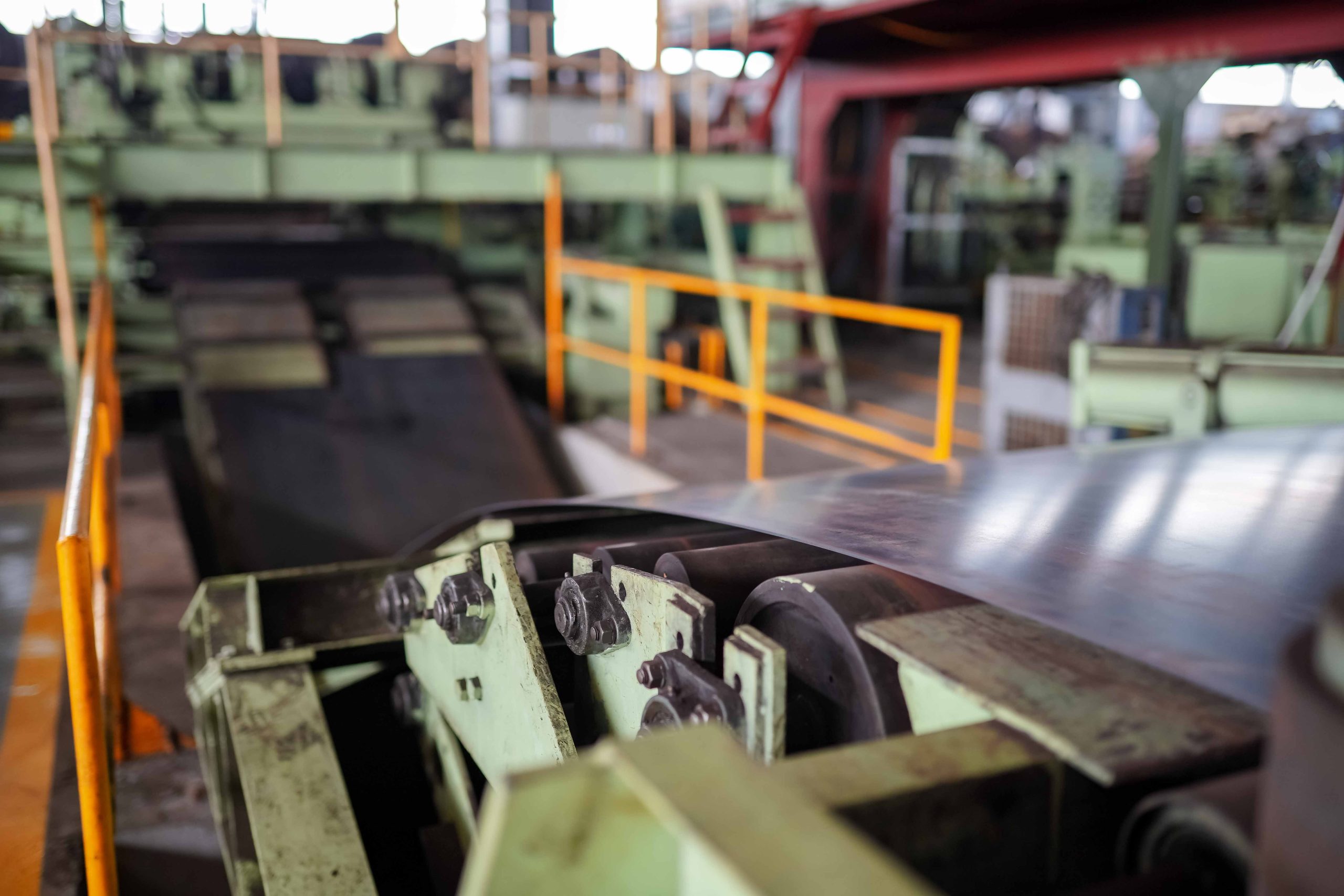

Slitting Requirement Table

Steel Coil

Coil Material ( H, C, E, G, A, P, L, PO)
Thickness mm 0.5 – 12
Coil Width mm 200 – 1850
Coil Weight kg Tối đa 30,000
Inner Coil Diameter mm 508/610/750
Outer Coil Diameter mm Tối đa 2,200

Product

Inner Product Diameter mm 508/610
Product width (Thickness required from 0.5 – 1.2 mm) mm 20 – 1250
Product width (Thickness required from 0.8 – 5.0 mm) mm 40.5 – 1350
Product width (Thickness required from 1.6 – 12 mm) mm 20 – 1850
Product width (Thickness required from 1.2 – 3.2 mm) mm 40.5 – 1250
Bavia mm Max 0.2
Tolerance Width mm (+,- 0.2)
Palet Packaging PBG
Number of lines 3

Multi-purpose machinery

Type Min – Max Thickness Width Length Outer Coil Diameter Max Weight(kg)

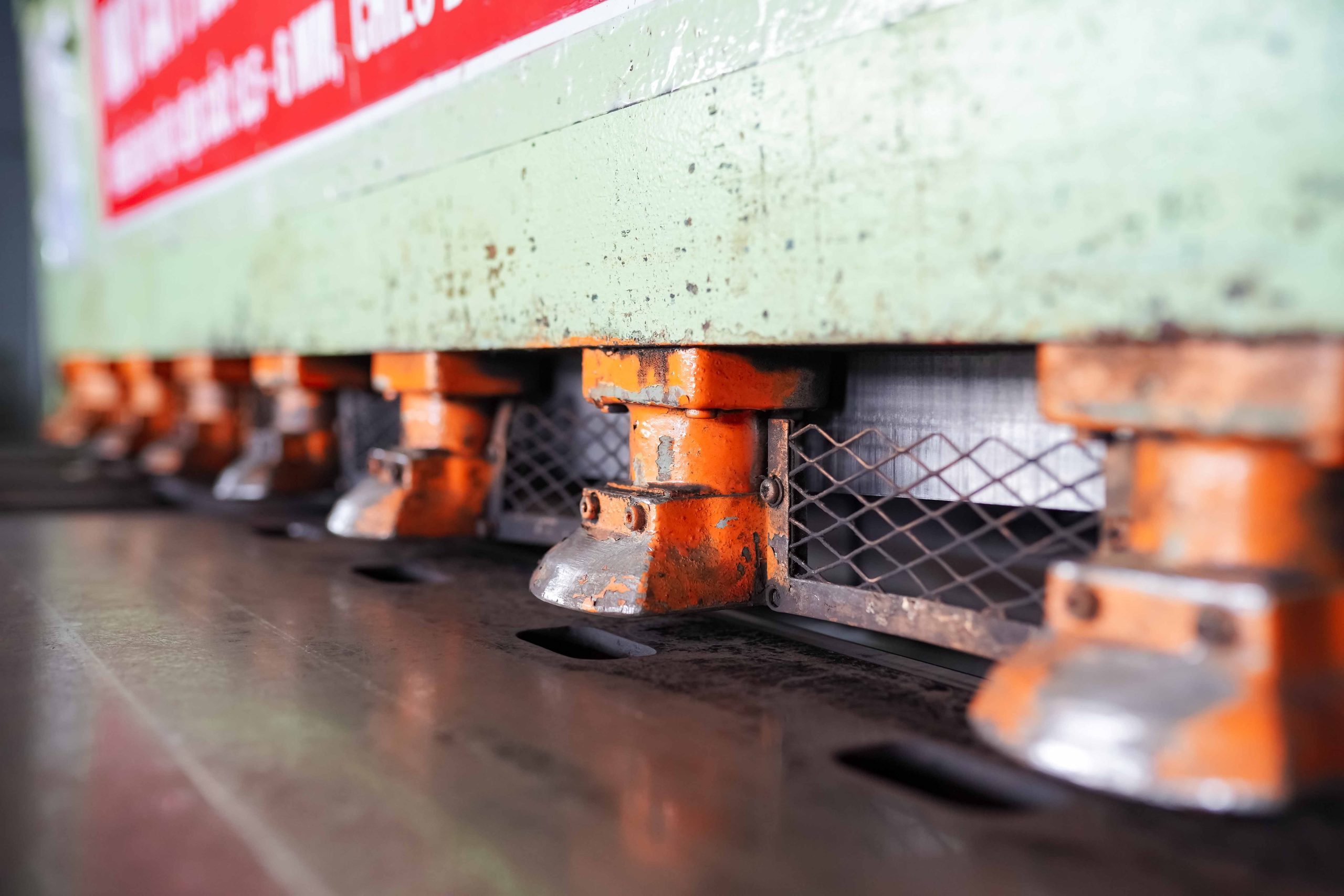

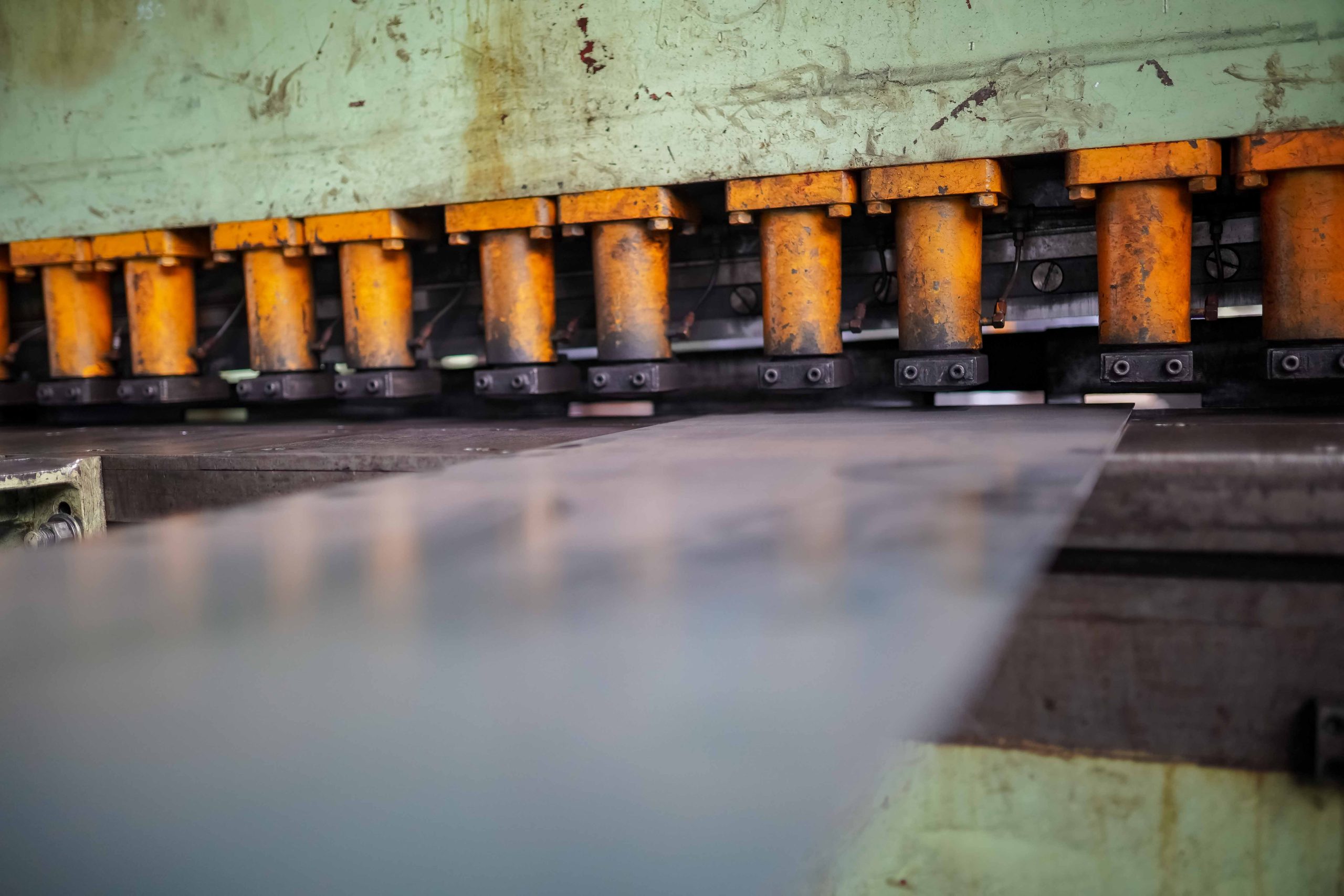

Shear Machine 0.3 – 14 mm 914 – 6000 mm 30 – 7000 mm N/A N/A
CNC 3,0 – 100 mm ～3500 mm ～1200 mm N/A N/A
Bending Machine 0,5～12 mm ～4000 mm 2200 25000
Drill
Multi Cutting Punching Machine
